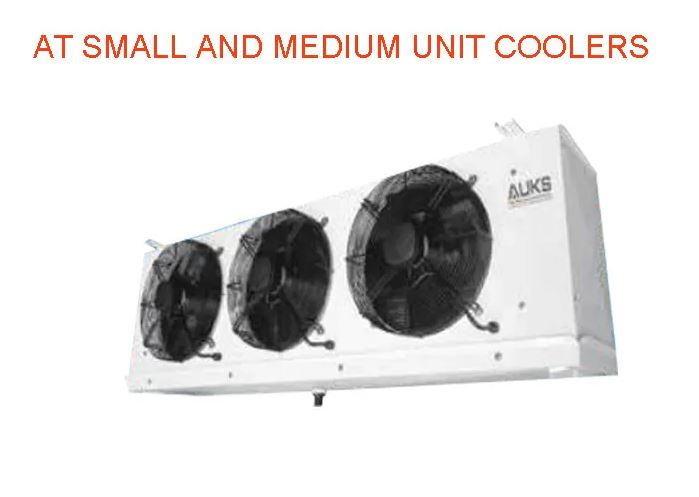

Air coolers&Freezers small and medium unit coolers models at302c4

Product Details:
Place of Origin: China
Brand Name: auks
Certification: CE, CCC, RoHS, UL
Model Number: AT301C4/AT503C8 series
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Carton box
Delivery Time: 7-10 working days after received your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Category: Tags: , ,
Mounting: Ceiling Mount Power Supply: Electric
Application: Cold Storage Material: Stainless Steel
Operating Voltage: 380/400 VAC Frequency: 50/60hz
Color: White
High Light:

evaporator in refrigeration system, air cooler evaporator

New Suspending Air Cooled Evaporator For Cold Room AT301C4

Specifications:

Wide range of cold quantity; Most of the installation have needle valve; Wiring board positive installation; Cabinet design

1.easy to open the crust

2.wide range of cold quantity;

3.Most of the installation have needle valve;

4.Wiring board positive installation;

5.Cabinet design

6.with a strong rope, be used for maintenance wet pan when fixing.

Note:   AT- mesothermal cooler

AK-low temp. cooler

AT/KA series for medium temperature:

300mm Fin Spacing 4.5mm
Models AT301C4 AT302C3 AT302C4 AT302C6 AT303C4 AT303C6 AT304C5 AT304C6
SC3 KW Ta -18° R22 1.4 2 2.3 3 3.7 4.6 5.4 5.8
Te -25° R404A 1.4 2 2.2 2.9 3.7 4.6 5.3 5.7
SC2 KW Ta 0° R22 1.9 2.7 3.5 4.2 5.4 6.6 8.1 8.3
Te -25° R22 2.1 3 3.5 4.5 5.4 6.8 8.1 8.6
SC4 KW Ta -25° R22 1.1 1.6 1.8 2.3 3.2 3.6 4.2 4.5
Te -31° R404A 1.1 1.6 1.7 2.3 3.2 3.6 4.1 4.4
Tube Length m 26 32 43 65 63 95 97 117
Surface ㎡ 7.3 9.1 12.2 18.2 17.8 26.8 27.4 32.8
Circuit Vol. dm³ 2 2.6 3.4 5.1 5 7.5 7.7 9.2
Fan Mot.No. 1 2 2 2 3 3 4 4
Air Flow m³/h 1400 2800 2700 2500 4050 3750 5000 4800
Air Throw m 4 6 6 5 7 6 8 8
Fan Mot.Amper A 0.3 0.6 0.6 0.6 0.9 0.9 1.2 1.2
Fan Mot.Power W 90 180 180 180 270 270 360 360
Electric Defrost A 2.3 Y 3.6 Y 3.6 Y 7.3 Y 5.5 Y 10.9 Y 13.6 Y 13.6 Y
Electric Defrost W 1500 2400 2400 4000 3600 6000 7500 7500
In Tube Inch. 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Out Tube Inch 5/8 5/8 5/8 5/8 5/8 5/8 5/8 7/8
Net Weight kg 20 31 33 36 49 55 62 65
Drawing No. ① ② ② ② ③ ③ ④ ④
400mm Fin Spacing 4.5mm
Models AT401C3 AT401C4 AT401C5 AT401C6 AT402C3 AT402C4 AT402C5 AT402C6
SC3 KW Ta -18° R22 2 2.3 2.9 3.1 4 4.7 5.8 6.3
Te -25° R404A 2 2.3 2.9 3.1 4.1 4.7 5.8 6.2
SC2 KW Ta 0° R22 2.5 3.5 4.1 4.3 5.7 7.1 8.3 9.1
Te -25° R22 3 3.5 4.2 4.7 6 7.1 8.4 9
SC4 KW Ta -25° R22 1.6 1.8 2.2 2.4 3.2 3.6 4.5 4.9
Te -31° R404A 1.6 1.7 2.2 2.4 3.2 3.6 4.5 4.8
Tube Length m 26 35 43 52 52 69 86 104
Surface ㎡ 7.3 9.7 12.2 14.6 14.6 19.5 24.4 29.2
Circuit Vol. dm³ 2 2.7 3.4 4.1 4.1 5.4 6.8 8.2
Fan Mot.No. 1 1 1 1 2 2 2 2
Air Flow m³/h 3050 2910 2840 2780 6100 5820 5680 5560
Air Throw m 8 8 7 6 10 9 8 8
Fan Mot.Amper A 0.5 0.5 0.5 0.5 1 1 1 1
Fan Mot.Power W 200 200 200 200 400 400 400 400
Electric Defrost A 2.3 Y 2.3 Y 4.5 Y 4.5 Y 4.5 Y 4.5 Y 9.1 Y 9.1 Y
Electric Defrost W 1500 1500 2500 2500 3000 3000 5000 5000
In Tube Inch. 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2
Out Tube Inch 5/8 5/8 5/8 5/8 5/8 5/8 5/8 7/8
Net Weight kg 31 33 35 36 49 52 55 58
Drawing No. ⑤ ⑤ ⑤ ⑤ ⑥ ⑥ ⑥ ⑥
400mm Fin Spacing 4.5mm
Models AT403C4 AT403C5 AT403C6 AT404C5 AT404C6 AT405C5 AT405C6
SC3 KW Ta -18° R22 7.6 8.6 9.8 10.2 12.1 13.2 14.5
Te -25° R404A 7.8 8.6 9.8 10 12 12.8 14.3
SC2 KW Ta 0° R22 10.7 12.5 14 15.5 17.8 20.4 22.3
Te -25° R22 11.1 12.8 14.4 15.5 18 20.5 22.1
SC4 KW Ta -25° R22 6 6.7 7.7 8.3 9.4 10.5 11.1
Te -31° R404A 6.1 6.7 7.7 8.2 9.3 10.3 10.9
Tube Length m 104 130 156 158 190 211 253
Surface ㎡ 29.2 36.5 43.8 44.6 53.5 59.4 71.3
Circuit Vol. dm³ 8.2 10.2 12.3 12.5 15 16.6 20
Fan Mot.No. 3 3 3 4 4 5 5
Air Flow m³/h 8730 8520 8340 11000 10600 14000 13700
Air Throw m 11 10 10 11 11 12 12
Fan Mot.Amper A 1.5 1.5 1.5 2 2 2.5 2.5
Fan Mot.Power W 600 600 600 800 800 1000 1000
Electric Defrost A 6.8 Y 13.6 Y 13.6 Y 16.4 Y 16.4 Y 21.8 Y 21.8 Y
Electric Defrost W 4500 7500 7500 9000 9000 12000 12000
In Tube Inch. 1/2 5/8 5/8 5/8 7/8 5/8 7/8
Out Tube Inch 7/8 7/8 7/8 7/8 1-1/8 7/8 1-1/8
Net Weight kg 72 77 82 97 104 121 129
Drawing No. ⑦ ⑦ ⑦ ⑧ ⑧ ⑨ ⑨
500mm Fin Spacing 4.5mm
Models AT501C6 AT501C8 AT502C5 AT502C6 AT502C8 AT503C6 AT503C8
SC3 KW Ta -18° R22 6.4 7.4 10.6 12.6 14.4 17.2 19.3
Te -25° R404A 6.3 7.3 10.5 12.7 14.3 17.1 19
SC2 KW Ta 0° R22 9.5 10.9 16 18.1 20.6 26.9 30.5
Te -25° R22 9.5 11 16.1 18.5 21.1 26.6 30.2
SC4 KW Ta -25° R22 4.9 5.8 8.2 9.9 11.3 13.1 14.7
Te -31° R404A 4.8 5.7 8 9.9 11.2 13 14.4
Tube Length m 108 144 162 194 259 317 422
Surface ㎡ 30.4 40.5 45.6 54.7 73 89.2 118.9
Circuit Vol. dm³ 8.5 11.3 12.8 15.3 20.4 25 33.3
Fan Mot.No. 1 1 2 2 2 3 3
Air Flow m³/h 5600 5350 11200 10900 10200 16800 15900
Air Throw m 13 12 14 14 13 15 14
Fan Mot.Amper A 1.4 1.4 2.8 2.8 2.8 4.2 4.2
Fan Mot.Power W 580 580 1160 1160 1160 1740 1740
Electric Defrost A 7.3 Y 7.3 Y 13.6 Y 13.6 Y 13.6 Y 21.8 Y 21.8 Y
Electric Defrost W 4800 4800 9000 9000 9000 14400 14400
In Tube Inch. 5/8 5/8 5/8 7/8 7/8 7/8 7/8
Out Tube Inch 7/8 1-1/8 1-1/8 1-3/8 1-3/8 1-3/8 1-3/8
Net Weight kg 102 110 150 156 168 225 246
Drawing No. ⑩ ⑩ ⑪ ⑪ ⑪ ⑫ ⑫

Air coolers&Freezers small and medium unit coolers models at302c4 2

Air coolers&Freezers small and medium unit coolers models at302c4 3
